Chronosphere uses the following terms when describing licensing concepts and usage in Chronosphere Observability Platform. To track your telemetry usage against your licensing quotas, use License Overview. Chronosphere provides this overview to monitor data usage against your licensing quotas. Use the overview charts to help identify usage trends across data types and proactively manage data usage to avoid exceeding your organization’s licensing limits.

​
License overview

The License Overview is available in your Observability Platform tenant. In the navigation menu, click Go to Admin and then select License Overview. The License Overview page consists of these sections, selectable by tab:
The Consumption tab tracks your consumption for each telemetry type, compared to your license limits. These statistics display across two selectable tabs for Snapshot and overall Trends:
  • The Snapshot is an overview of your current license usage. When selected, the page displays each licensing statistic as a percentage of your contract limit, along with a graph for that statistic over a pre-selected time period.
  • The Trends page explains how your license usage has changed over the selected time period, grouped and graphed by telemetry type.
License dimensions currently exceeding capacity highlight in red, and licenses close to exceeding capacity are orange.
Hold the pointer over a graph to display the three vertical dots icon. Select this icon to display a menu where you can select a relevant Observability Platform tool for to use for detailed analysis. See common panel elements for an explanation of the available tools.

​
Tracing licenses

Use the License Overview to track trace consumption against your license quotas:
  • On the Snapshot page, the Traces consumption section displays aspects of Processed and Persisted tracing data, measured in bytes. These include:
    • Daily average rates per second
    • Month-to-date cumulative trends
    For most users, the processed and persisted consumption rates are for the current month. If your organization uses consumption-based pricing, then the processed and persisted bytes are measured against your contract to date.
  • On the Trends page, you can view trace consumption trends in higher resolution. If your organization uses consumption-based pricing, a secondary graph displays the cumulative consumption trends over the past seven days.
  • On the Contract page, view your limits and retention policies.
You can also view tracing license information in the Tracing License Consumption dashboard.

​
Events licenses

Use the License Overview to track events consumption against your license quotas:
  • On the Snapshot page, the Events consumption graph for Persisted Capacity displays the percentage of events consumed against your events license capacity.
  • On the Trends page, you can view event consumption trends in higher resolution. The Persisted capacity limit displays the number of events that can persist per minute in your tenant. This limit is enforced and can incur penalties if exceeded. In certain circumstances, this limit can exceed the license limit temporarily. The Capacity limit displays the number of events that can persist per minute, as defined by your the license in your contract with Chronosphere. The current consumption percentage displays a decimal ratio of persisted data against your per-minute license limit for the selected time period. This value is calculated by dividing the persisted events per minute by the number of events that can persist per minute, defined by the license limit. Use this information to understand the relationship between your persisted data consumption and the defined license limit.
  • On the Contract page, view your limits and retention policies.

​
Logs licenses

Use the License Overview page to track log consumption against your license quotas:
  • On the Snapshot page, the Logging consumption section displays the following panels and graphs:
    • Percentage of persisted writes and processed writes consumed against your full licensing contract.
    • Elapsed time against your full contract. Compare the percentage of persisted writes and processed writes consumption against the time elapsed to understand your true consumption rate.
    • Daily persisted and processed log data over the past 30 days.
    • Cumulative trend of persisted data and processed data against the license limit, over the life of your licensing contract.
  • On the Trends page, you can view log consumption trends in higher resolution. Trends display for the last seven days by default. The Persisted limit displays the number of logs that can persist per minute in your tenant.
  • On the Contract page, view your limits and retention policies.
You can also view log license information in the Logging License Consumption dashboard.

​
Capacity limits

Capacity limits indicate your maximum license capacity for metrics data in Observability Platform. Exceeding your capacity limits incurs penalties, which can result in dropped metrics. Dropped metrics can affect dashboards, alerts, and other reports. The license limit indicates your contractual system license with Chronosphere. The capacity and license limits display License Overview Contracts page. These limits are broken down into individual limit graphs:
  • Persisted writes
  • Matched writes
  • Persisted cardinality
  • Histogram persisted writes
  • Histogram matched writes
  • Histogram persisted cardinality

​
Ingestion limits and retention policies

Retention policies define the amount of time Observability Platform retains telemetry data. Contact Chronosphere Support to configure the intervals used for your system. These policies might be based on your contract or license. View retention policies in your License Overview Contract page. Ingestion limits define the amount of raw data Observability Platform can ingest.

​
Metrics

Your system’s Metrics Ingest Retention Policies might look like:
  • Five days for raw data, and resolutions of 15, 30, and 60 seconds.
  • 120 days for one-minute data.
  • 180 days for one-hour data.
  • 1,825 days for 24-hour data.
Metrics rules use the existing, configured set of intervals in rule definitions.

​
Change events policies

Change events have a default retention policy of 90 days. This value is fixed and can’t be altered. For information about ingest limits for change events, see Change event limits. The Contract page also displays the Persisted capacity per minute and the Persisted license per minute for events.

​
Traces license limits

The Contract page displays your license limits for Persisted Writes and Matched Writes, and your Traces Ingest Retention Policies. Traces have a default retention policy of 30 days of raw data.

​
Logs license limits

The Contract page displays your Persisted Logs Limit and Logs ingest retention policies. Logs have a default retention policy of 30 days of raw data.

​
Metric license types

Observability Platform defines two types of metric licenses: the Standard Metrics License and Histogram Metrics License.

​
Standard Metrics License

The Standard Metrics License measures aggregations, persisted writes, and persisted cardinality license consumption for the following Observability Platform metric types:
  • Cumulative counter
  • Delta counter
  • Gauge
Because Observability Platform aggregates and persists legacy Prometheus histograms and OpenTelemetry explicit bucket layout histograms as cumulative or delta counters, these metrics consume Standard Metrics License capacity.

​
Histogram Metrics License

The Observability Platform histogram metric type supports both OpenTelemetry exponential histograms and Prometheus native histograms. The Histogram Metrics License measures aggregations, persisted writes, and persisted cardinality license consumption for the following Observability Platform metric types:
  • Cumulative exponential histogram
  • Delta exponential histogram
Use the License Overview Trends page to observe histogram persisted writes, matched writes, and persisted cardinality in the Metrics consumption trends graph.

​
Aggregations

Your license usage is determined by your database writes.
Matched writes are the number of writes per second being matched for transformation and reshaping by the Observability Platform aggregation tier.The aggregator counts the number of data points matched into each aggregator rule, whether rollup or downsampling. If a data point matches one rule, that’s one matched write. If a data point matches two rules, that’s two matched writes. The sum of the matched data points per rule equals the total matched writes for the aggregator. Recording rules aren’t considered an aggregation rule for the purpose of counting matched writes.A high level formula for this limit is:
Sum (number of data points matched per-rule)
Writes also depend on your Collector scrape interval. Reducing the scrape interval produces fewer writes, but can reduce visibility.See your current Matched Writes level in the License Overview Snapshot in the Metrics Consumption section. On the Trends page, review usage over time in the Metrics Consumption Trends graph.If your organization exceeds 100% of their Matched Writes Capacity Limit, data that would otherwise match aggregation rules is dropped. The data that drops depends on your metric pool allocations, and the priority set for each pool.

​
Persisted writes

The number of persisted writes to the Observability Platform database consists of the following:
(Number of unaggregated, raw data points written to the database)
+ (Number of aggregated data points written to the database)
+ (Number of non-Prometheus non-rolled up aggregated data points written to the database)
If you exceed 100% of your Persisted Writes Capacity limit, data points might be dropped. Quotas determine the data which drops first. You can split the total system-persisted writes per second into per-pool quota allocations. Pools generally align with groups or teams, depending on your internal organization. Read more about configuring quotas. If you set up per-pool quotas, you can review the quotas in a dedicated dashboard. To improve and enhance performance, stability, and features, Observability Platform adds time series to your database. These data points aren’t counted against your license quota. You can review your current usage in the Persisted writes graph on the License Overview Snapshot page, in the Metrics consumption section. To see changes over time, select Trends, and review the Metrics consumption trends graph.

​
Persisted cardinality

Matched writes and persisted writes measure the count of data points at any given moment in time. Persisted cardinality operates differently, because it’s a cumulative measure that calculates the sum of the unique time series of the persisted writes that Observability Platform stores, seen over the last 2.5 hours only. Because this measure is cumulative, changes you make to reduce persisted cardinality won’t be immediately reflected as a decrease in the persisted cardinality consumption percentage. For example, you can use rollup rules to downsample and aggregate metrics before they’re stored. However, inactive time series don’t expire until they stop counting towards the rolling window, so changes aren’t reflected until 2.5 hours after the series was last seen by Observability Platform. Read more about how persisted cardinality limits work, and then learn about how you can manage persisted cardinality limits and avoid persisted cardinality limits. To see persisted cardinality license usage changes over time, in the License overview select Trends, and review the Metrics consumption trends graph.

​
How persisted cardinality limits work

Persisted cardinality is comparable to a leaky bucket. Over time, new series can be added until the bucket is full. When the bucket is at maximum capacity, there’s no space for new time series, so they’re rejected. When existing time series expire, they make room for new series. In the following example, the persisted cardinality capacity is five unique time series. The animated image shows the lifecycle of six, unique time series (A, B, C, D, E, and F) as new data points are added, and as other data points expire.

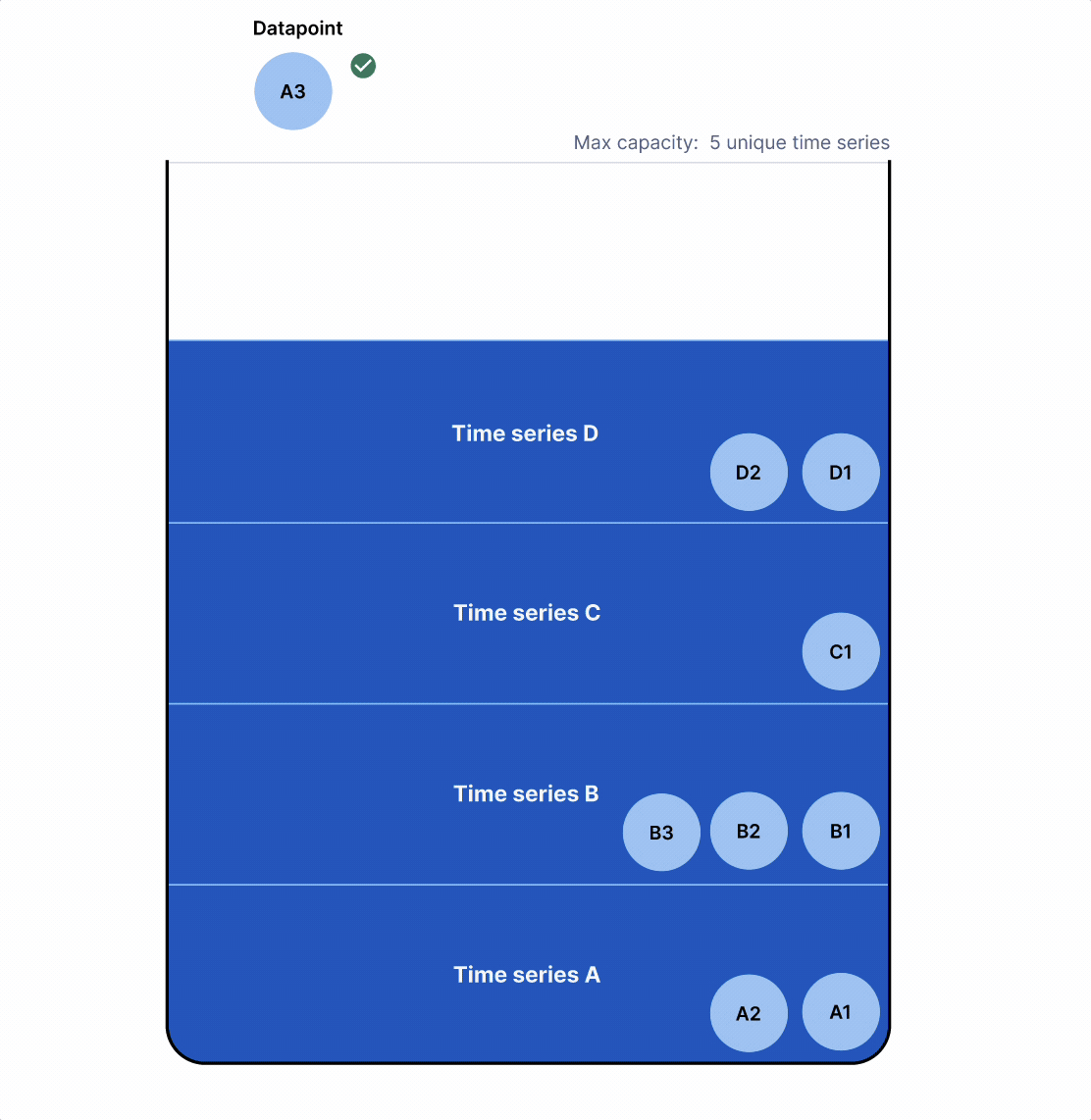

Animated image showing data points being introduced. When the persisted cardinality limit is reached, no more time series are accepted.
As data points are introduced, they’re either accepted or rejected based on whether the persisted cardinality bucket is full (reached maximum capacity), and whether the related time series already exists in the bucket:
  • If the bucket is at maximum capacity and the series already exists, the data point is accepted.
  • If the bucket is at maximum capacity and the series doesn’t exist, the series is rejected.
The following table shows how data points A3, E1, and F1 are processed, based on the bucket status:
Data pointStatusDescription
A3Time series A is in the bucket, so data point A3 is accepted.
E1Time series E isn’t in the bucket, but the bucket has space for one more time series, so data point E1 is accepted in time series E.
F1Time series F isn’t in the bucket, and the bucket is at capacity, so data point F1 is rejected.
Over time, data points expire based on when they entered the bucket. When data points exceed the 2.5 hour window, they’re excluded from the persisted cardinality bucket. In the example, data points A1 and D1 expired, so they’re excluded from the bucket. When data point C1 expires, it’s also excluded. Because data point C1 is the last data point in time series C, the entire series is removed, making space for a new time series in the bucket.
Data pointStatusDescription
A1Data point A1 expired, so it’s excluded from the bucket.
D1Data point A1 expired, so it’s excluded from the bucket.
C1Data point C1 is expiring, so it’s excluded from the bucket.

​
Manage persisted cardinality limits

If your organization exceeds 100% of their Persisted Cardinality Capacity Limit, data points for any new time series not seen in the last 2.5 hours will be dropped until you’re under this limit. Data points for existing time series will continue to be persisted. Series that are more stable or regularly emitted aren’t at risk of being dropped because they’re always in the system, and aren’t categorized as new series. For example, series that don’t change any labels are considered more stable. To fully resolve a penalty period, the rate of new series must be less than the rate of expiring series. The higher the differential between these rates, the faster the penalty resolves. To manage persisted cardinality limits:
  • Review the Persisted Cardinality Quotas dashboard, the Usage Dashboard and the Metric Growth dashboard to understand the source of cardinality growth.
  • Create drop rules and aggregation rules like mapping rules and rollup rules to roll away sources of growth. Old series remain in the cardinality window for 2.5 hrs.
  • Use the Recommendations page to help identify metrics and labels with no usage or utility over the past 30 days. You can then create drop rules and rollup rules based on the recommendations.
The 2.5 hour expiration window is a rolling window, which means the constant rate of expiring series makes room for an equal rate of new series to be added. This behavior means the penalty period you experience can be much shorter than 2.5 hours. Queries with time ranges that overlap with penalty periods can produce inconsistent or partial results due to the dropping of time series during those periods.

​
Avoid persisted cardinality limits

Leverage quotas to isolate the impact penalty to specific metrics. For example, if quotas ensure only low_priority metrics are dropped, queries that don’t match low_priority metrics are guaranteed to be unaffected even if the time range overlaps with a penalty period. Use the following tools and techniques to avoid hitting persisted cardinality limits:
  • Review the Persisted Cardinality Quotas dashboard, the Usage Dashboard and the Metric Growth dashboard to understand the source of cardinality growth.
  • Learn about different methods to reduce cardinality.
  • Proactively create drop rules and aggregation rules like mapping rules and rollup rules ahead of potential overages to evict older time series and make room for new ones.
  • Proactively define thresholds on individual pools to better manage persisted cardinality.
  • If your organization knows which new metrics services are generating, try to control the rate that new series are introduced through smaller, more incremental deploys.
