Query limits
Query resources are finite in any given system. Resource demand grows based on factors such as the source of, and the amount of data the query retrieves.
Any very large query can request enough resources at either the database or browser level that it leaves few resources for other queries, causing them to time out waiting for resources to become available.
Chronosphere Observability Platform employs several query limits at both the browser level and the database level to ensure a consistent user experience across the system in response to current query demand. Queries can come from one of two query sources.
Query sources
In Observability Platform, query demand comes from either an automated or a manual source:
Automated sources, such as monitors and recording rules with regular evaluation intervals, produce a relatively predictable demand on the query resources at the database and at the browser.
Queries from an automated source often request a smaller set of data than something like a dashboard query, but might incur high request volume. Although each individual query is small, the amount of query resources they’re demanding at regular intervals is very large.
Manual sources, such as loading a dashboard, running a query in Metrics Explorer, or making a direct API call, place query demands on query resources at both the database and browser that are cyclical or spiky.
Queries from a manual source are often exploratory, or retrieve longer time periods than automated queries. The load these queries place on the system varies significantly with the scale of data returned. Queries requesting more time series and data points require more resources to retrieve information from the database, and also can require more resources to deliver that information to the browser.
Individual queries of either type demand different query resources depending on the amount of data retrieved from the database, amount of data returned the browser, or both. For example:
- A query that places high load on the database but low load on the browser might request the sum of a large set of data. The query retrieves all relevant data points from the database (high database query load), but only returns a few summed data points to the browser for a system’s performance monitoring workflow.
- A query that places high load on both the database and browser might request the raw, unaggregated data points from all services (many unique time series) to return to the browser, such as for a debugging workflow.
Automated source query limits
Observability Platform includes the Metrics Query Capacity Overview dashboard to measure your automated query consumption against system capacity. Use this dashboard to understand how much query capacity remains as part of your budget. The dashboard includes queries from monitors, recording rules, and service accounts in the reporting metrics.
Observability Platform uses selectors per second and
data reads per second metrics to track automated source
query limits. Exceeding either of these limits results in dropping data with a 429
HTTP status. Observability Platform continues dropping an indiscriminate subset of
incoming queries to keep query traffic within defined limits.
To guard against prematurely dropping queries when unforeseen spikes occur, Observability Platform doesn’t start dropping data until either of the query limits are exceeded for 10 minutes consecutively.
Selectors per second
These metrics track the count of selectors that queries issue per second. For
example, this metric includes a single selector named up
:
up{app="webserver"}
A more complex query might include multiple selectors. The following query includes
two sum
selectors:
sum(rate(http_server_handled_total{status="200"}[2m]) / sum(rate(http_server_handled_total[2m]))
The Metrics Query Capacity dashboard displays the number of selectors consumed and dropped against the limit per second. For more information about selectors, see the Prometheus documentation (opens in a new tab).
The selectors per second query limit can’t be increased.
Reduce selectors per second query load
Use the following strategies to reduce query load for selectors per second:
-
Configure longer intervals for monitors and recording rules.
For example, let’s say you have 1,000 monitor queries that include a single selector, each of which runs every 15 seconds. These figures calculate to roughly 66 selectors per second (
1000/15
). Increasing the execution interval to 60 seconds reduces the number of selectors per second to roughly 16 (1000/60
). -
Structure alert and monitor queries to use PromQL aggregations for optimal efficiency. For example, you might create two separate alerts for service A and service B error rates:
sum(rate(http_server_handled_total{service="A". status=~"5.*"}[1m])) > 10 sum(rate(http_server_handled_total{service="B". status=~"5.*"}[1m])) > 10
Instead, create a single monitor that checks both services:
sum(rate(http_server_handled_total{service=~"A|B". status=~"5.*"}[1m])) by (service) > 10
Data reads per second
These metrics track the amount of raw data that Observability Platform fetched to run the specified queries per second. Observability Platform calculates data consumed by a query with this calculation:
READS = sum(SELECTED_SERIES) * (max(QUERY_RANGE, 1h) / RESOLUTION)
SELECTED_SERIES
is the number of series selected by query selectors.RESOLUTION
for the query depends on the query range and how your Observability Platform tenant is configured. If the query selects a raw namespace, then the resolution defaults to1m
.
Let’s say you have a range query sum(up{app="webserver"})
with a time range of
[now()-5m, now()]
. If the query selects 10 series, then data reads per second is
calculated as 600
, defined by this equation:
READS = 10 * 1h/1m
Consider a more complex range query that includes two selectors per second, with a
range of [now()-7d, now()]
:
sum(rate(http_server_handled_total{status="200"}[2m]) / sum(rate(http_server_handled_total[2m]))
If the first selector identifies 10 series and http_server_handled_total
equals
30
. Because the query range is seven days (7d
), the data reads per second
calculation uses a five-minute retention (5m
). The resulting calculation equals
80,640
data reads per second, defined by this equation:
READS = (10 + 30) * 7d/5m
For an instant query such as sum_over_time(job_execution_errors[30d])
, if the
job_execution_errors
selector identifies five series, the resulting calculation
equals 43,200 data reads per second. The default query range for monitors and
recording rules is five minutes (5m
), but because the range selector is 30 days
(30d
), the query translates to a thirty-day range:
READS = 5 * 30d/5m
Reduce data reads per second query load
Use the following strategies to reduce query load for data reads per second:
-
Write queries with a shorter time range or shorter range selectors.
-
Create rollup rules for unnecessary labels in your most expensive queries to reduce the amount of series the query needs to fetch.
-
Ensure that query selectors are as precise as possible, especially in join queries. For example, consider this query:
sum(rate(container_cpu_seconds{cluster="prod"}[1m]) by (node, container) / on (node) node_cpu_capacity
Including
{cluster="prod"}
in the latter part of the query reduces the number of series the query needs to fetch for the right side of the join:sum(rate(container_cpu_seconds{cluster="prod"}[1m]) by (node, container) / on (node) node_cpu_capacity{cluster="prod"}
Optimize queries
Large queries might be good candidates for optimization by decreasing the amount of data the query is trying to retrieve. Use the Query overview dashboard to identify large queries.
Optimize queries by:
- Shortening the time window, or using rollup rules to decrease the data scale.
- Improving the query syntax by removing regular expressions to reduce the index lookups performed by the query.
- Adjusting the number of concurrent unique requests in the system.
Query truncation at the browser

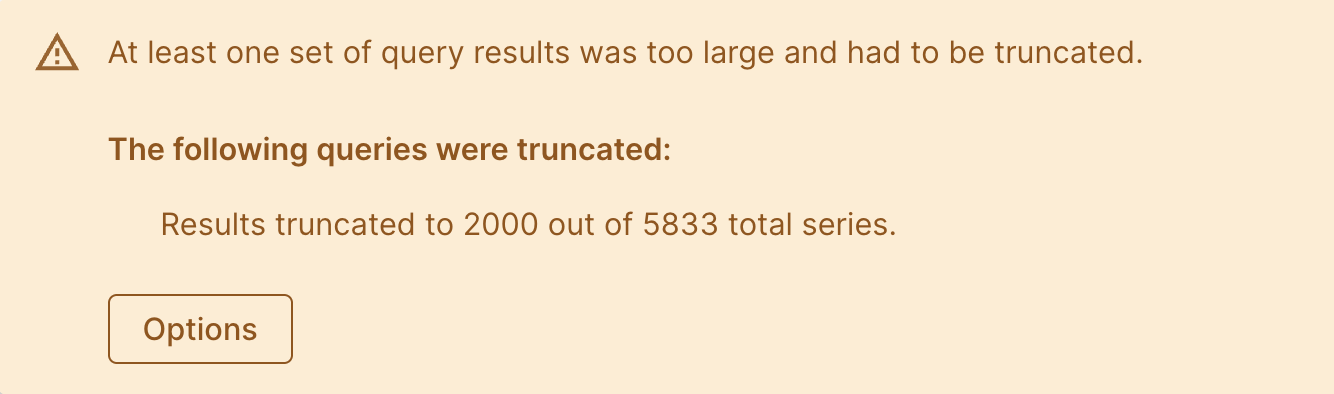

Observability Platform can truncate queries that return many unique time series or data points to the browser to reduce the chances of long load times and query timeouts. Truncating queries protects the browser from crashing when querying many metrics. Dashboards and the Metrics Explorer both use query truncation.
Observability Platform calculates the browser limit using a combination of time series, time granularity, and time period (and their resulting data points) requested by the query.
The limits are:
- Time series a query can return to the browser: 2,500
- Data points a query can return to the browser: 300,000
The number of time series and data points returned to the browser might be the same as the number requested from the database. If the query is doing some level of aggregation, the number of time series and data points returned might be fewer than what the query requests, but not greater.
To reduce the number of series returned to the browser, view the Aggregation Rules UI to determine if a queryable aggregate metric already exists. If an aggregate metric doesn’t exist, use aggregation rules or derived metrics to query an aggregated subset of the raw data, or break up the query into smaller chunks (by time, for instance) to reduce returned data points.
Enable or disable query truncation
By default, Observability Platform enables query truncation.

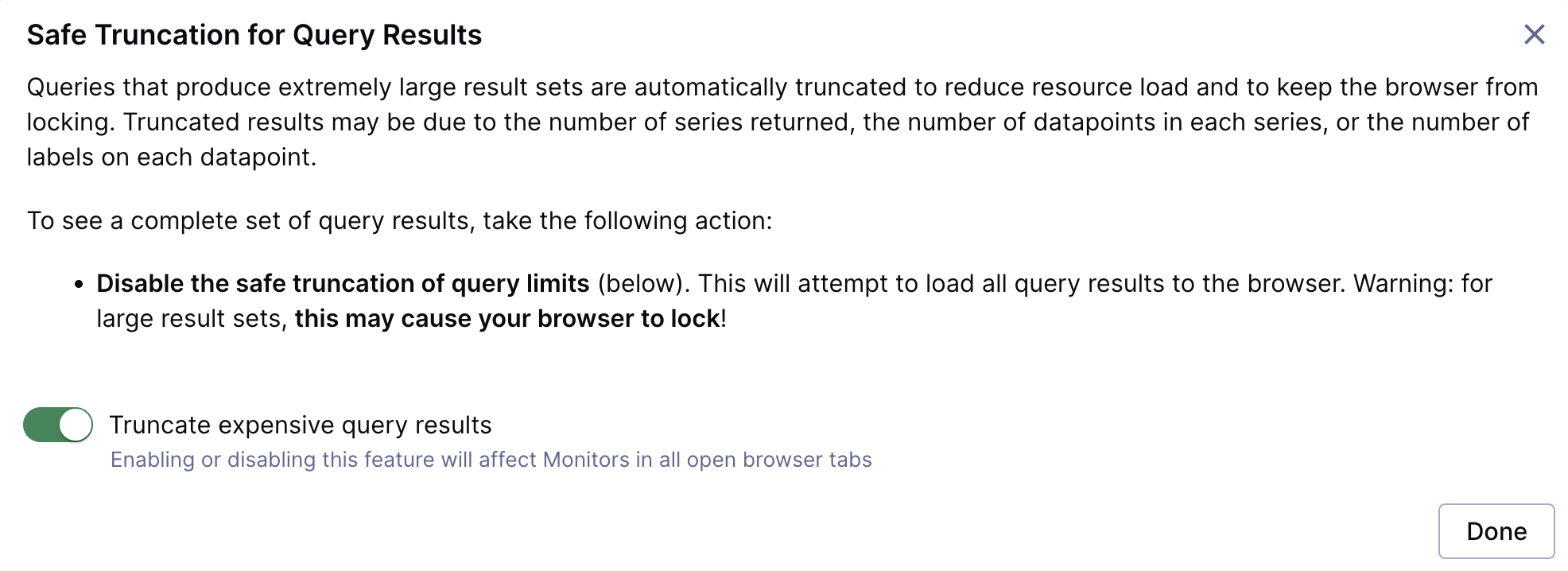

To disable or re-enable query truncation:
- In the displayed dialog, select Options.
- Click the Truncate expensive query results toggle.
- Click Done.
Disabling query truncation causes expensive queries to take longer to load and can result in timeouts (no results returned for a single query), or might cause the browser to crash.
Query protections in the database
Observability Platform employs protections against very large queries in the database layer, in addition to the browser.
A query that requests many unique time series or data points from the database can experience these situations:
- Per-query scale protections
- Across-query resource balancing protections
- Individual query timeouts
These protections ensure a positive user experience for the maximum number of users.
A query requests resources from the database until it has the data it needs, or until resources run out. Available resources can run out due to these reasons:
- Individual query scale protections are in place.
- There are many queries sharing scarce query resources (query balancing).
- An individual query reached a timeout.
Query scale protections
Query scale protections ensure a positive user experience for the maximum number of users. Current database query scale protections are:
- Time series (opens in a new tab) a query can retrieve: 300,000
- Data points a query can retrieve: 200,000,000
The data points needed to satisfy the query’s time requirement are calculated as:
(Number of requested time series) * (Data resolution of the requested time series)
For example, a query does a sum of data points over two minutes, storing the requested data with a 10-second resolution. That sum operation requires 12 data points per time series, calculated as:
60s + 60s = 120s; 120s/10s resolution = 12 data points
If the query requests 20,000 time series, the number of data points is 240,000, calculated as:
20,000 time series * 12 data points per series for the 2 minute window
Dashboard queries request more data points because they use longer ranges. If the
previous example query is a dashboard query and the dashboard window is set to the
past one hour, the data points retrieved are 60 minutes / 2 minute sum interval = 30 intervals
, 30 * 240,000 = 7,200,000 data points
.
Individual queries requesting more than the allowable limits will time out.
Query resource balancing
Observability Platform tracks the number of concurrent queries received, the scale of each query, and the unique users for each query. Observability Platform makes an effort to fairly balance the available query resources between large and small queries, and also between unique users. If there are many concurrent queries, and each has relatively high scale, some queries might need to complete in stages, and must wait (be throttled) to allow queries from other unique users to make use of the available resources. The more unique users, the more balanced the system is in enabling different queries to complete.
Query timeouts
Even with balancing measures in place, if there are insufficient resources for a query to complete within a specified time period, the query will time out. Observability Platform displays an error message indicating the query timed out.
If a query times out, try these methods to resolve the issue:
- Modify the query syntax to retrieve less data per query. For example, try to shorten the time range.
- Use shaping rules such as aggregation rules to downsample or roll up unnecessary labels, and then modify the query to retrieve aggregated data points instead of the raw data points.
