Classic Metrics Explorer
This feature isn't available to all Chronosphere Observability Platform users and might not be visible in your app. For information about enabling this feature in your environment, contact Chronosphere Support.
The classic Metrics Explorer is an older tool for investigating query requests and responses, and for crafting queries of your metrics.
Open classic Metrics Explorer
To open the classic Metrics Explorer:
- In the navigation menu, click Explorers > Metrics Explorer.
- If the Metrics Explorer in your navigation menu opens the new Observability Platform Metrics Explorer interface, you can access the classic Metrics Explorer by clicking the three vertical dots > Revert to classic Metrics Explorer in the Observability Platform Metrics Explorer's configuration bar.
- A dialog opens to confirm or cancel your decision. To always open the classic Metrics Explorer when you select the navigation menu's Metrics Explorer item, enable the Always default to classic checkbox in this dialog, then click Revert.
Switch to new Metrics Explorer
The new Metrics Explorer is a completely rewritten version of the Metrics Explorer that's fully integrated with the rest of Observability Platform.
The classic Metrics Explorer is no longer being developed. Chronosphere implements all new functionality and improvements only in the new Metrics Explorer.
To change all Metrics Explorer links in Observability Platform to open the new Metrics Explorer instead of the classic Metrics Explorer:
- Click Switch to new Metrics Explorer.
- Click Enable.
Metrics sources
The classic Metrics Explorer defaults to Prometheus metrics. To switch your metrics source, select an option from the dropdown next to Explore. For example, if you're ingesting Graphite metrics, switch the data source to Chronosphere Graphite. The display changes slightly depending on your source.
Query field
The Query field supports autocomplete for metric names and functions. Click an autocomplete result to update a query with a suggestion. To execute a query, press Shift+Enter (Shift+Return on macOS).
The query field makes suggestions regarding how to improve a query based on these factors:
- For counters (monotonically increasing metrics), a rate function is suggested.
- For buckets, a histogram function is suggested.
Chronosphere Observability Platform provides internal metrics for troubleshooting queries.
When typing in the query field with a label filter, some special characters such as a
plus sign ( +
) or open parenthesis ( (
) might cause
Observability Platform to display an error message, like:
An unexpected error happened
DetailsSyntaxError: Invalid regular expression:
To work around this issue, use the dropdown to select a value, or copy and paste the value from another location.
To run an additional query, click Add query.
Click Remove query to remove a secondary query, or click Clear all to remove all query conditions.
Explore metrics

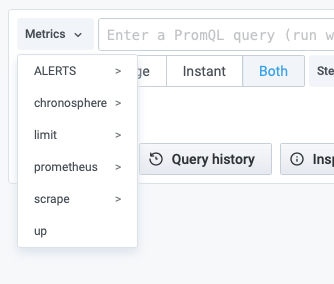

For Prometheus metrics, on the left side of the query field, the Metrics menu opens the classic Metrics Explorer that shows a hierarchical menu with metrics grouped by their prefix. This is a good starting point if you want to explore which metrics are available.
Selecting metrics from the Metrics menu adds them to the Query field.
Click Edit in Query Builder to open queries in the Query Builder.
Observability Platform includes a Query Builder you can use to construct, optimize, and debug queries before saving and using them, and for sharing queries with your team.
For details, see Query Builder.
For Graphite, click the text box next to Series and select a metric. To add functions, click the + next to Functions and edit the selected function to include your values.
Query type
To update the type of query, select from the following options:
- Range
- Instant
- Both
Add a Step size in the text field to change the query step size.
Split and compare queries
The split view provides a way to compare queries and their graphs and tables side-by-side or to review related data together on one page.

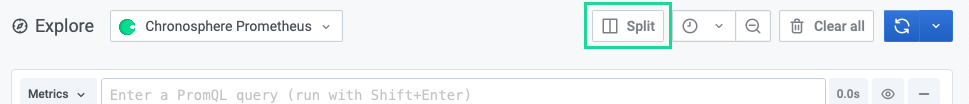

To open the split view, click Split to duplicate the current query and split the page into two side-by-side queries.
In split view, you can link the time pickers for both panels by clicking one of the time-sync buttons attached to the time pickers.
To close the newly created query, click Close Split.
Share queries
Complicated queries can generate long URLs that are difficult to share effectively. Click Copy URL to clipboard to copy a short URL to your clipboard you can share with other users. When a query matches a query that was previously shortened, the existing short URL is reused.
Observability Platform permanently stores short URLs in your tenant so that they don't expire.
Query history

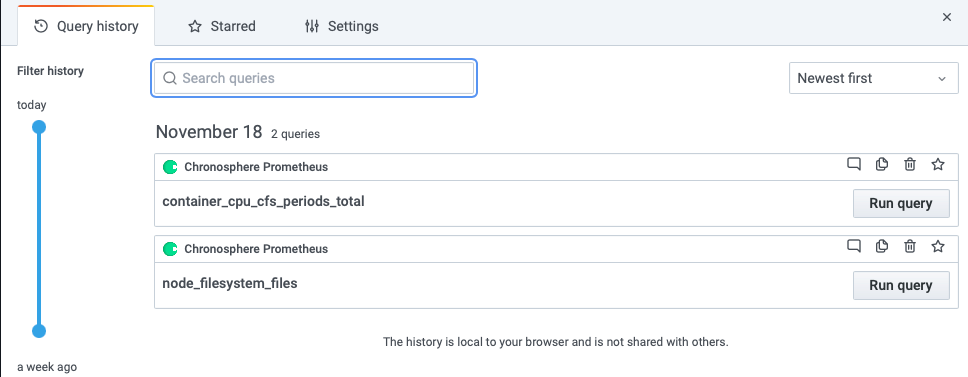

Click Query history for a list of queries that you have used in Explore local to your browser.
For each individual query, you can:
- Click Run query to re-run a query.
- Click the text bubble to create or edit a comment.
- Copy a query to the clipboard.
- Click the trash can to remove a query from the list.
- Click the Star to save a query. Starred queries show in the Starred tab.
By default, query history shows the most recent queries. You can change this from
the Sort queries by dropdown menu. The menu defaults to Newest first
.
Search previous queries using the search box at the top of the list.
Use the slider to the left of the query list to filter queries over time.
Query history settings
You can change the following settings for query history from the Settings tab:
- The period of time to save query history (default: 1 week)
- The default active tab (default: Query history tab)
- Only show queries for active data source (default: true)
- Clear query history
Inspector
The Inspector helps you understand and troubleshoot queries. Available options are:
- An overview of Stats for the query, including:
- Total request time
- Data processing time
- Number of queries
- Total number rows
- The Query inspector, which lets you to inspect the raw data.
- The JSON tab, to export the query as JSON.
- The Data tab, which shows raw data. Click Download CSV to export the data to as a comma-separated values (CSV) file.
Available metrics for troubleshooting
Additional metrics in your environment track the overall health of alerting and recording rules that you've configured. The following examples are based on Prometheus queries and troubleshooting.
Each metric has multiple labels you can use for slicing and monitoring, in the following format:
metric_name
: metric_descriptionlabel_name
: label_description + use
Visit Prometheus metric naming recommendations for more details about naming metrics.
Observability Platform provides the following metrics for troubleshooting:
prometheus_rule_group_last_duration_seconds
: A gauge metric that holds the total time the group took to complete its last iteration, in seconds.rule_group
: The group that this rule belongs to.
prometheus_rule_evaluation_duration_seconds
: A summary metric to track the average time an individual rule takes to evaluate.prometheus_rule_evaluations_total
: The total number of individual rule evaluations that occur.rule_group
: The group that this rule belongs to.
prometheus_rule_group_iterations_missed_total
: The total number of rule group evaluations missed due to slow rule group evaluation.rule_group
: The group that this rule belongs to.
prometheus_rule_group_iterations_total
: The total number of scheduled rule group evaluations, whether executed or missed.rule_group
: The group that this rule belongs to.
prometheus_rule_eval_failures_total
: The total number of individual rule evaluation failures.rule_group
: The group that this rule belongs to.type
: Alerting or recording depending on the type of rule.identifier
: The slug for the given rule.status_code
: The status code associated with the given evaluation failure.
Examples
The following examples explain how to create alerts for particular situations:
-
Consistent rule failures
To receive an alert whenever an individual rule consistently fails for five minutes, create a monitor with the following query:
sum by (identifier) (rate(prometheus_rule_eval_failures_total[1m]))
with a Sustain of 5m.
You can also create an alert for monitoring individual rule failures:
sum by (identifier) (rate(prometheus_rule_eval_failures_total{type="<alerting|recording>"}[1m])
-
Create alerts by rule type If you want to alert on certain types of rules, you can do something like:
sum by (identifier) (rate(prometheus_rule_eval_failures_total{identifier=~"<your-regex-here>"}[1m]))
For example, to create an alert only on a specific category of rules, you can do something like:
sum by (identifier) (rate(prometheus_rule_eval_failures_total{type="<alerting|recording>"}[1m])
