Chronosphere integrates two types of dashboards:

  • Standard dashboards, documented in Dashboards.
  • Older, "classic" dashboards based on Grafana, documented here.

Classic dashboards don't receive new features or performance improvements, while standard dashboards are being actively improved and are better integrated with Chronosphere interface and data sources.

Create a classic dashboard

To create a new dashboard:

  1. In the navigation menu select Dashboards.
  2. Click + Add.
  3. In the menu that appears, click New Dashboard to open the Add Dashboard dialog.
  4. Click Classic.
  5. Enter a descriptive name in the Name field.
  6. Enter an Owner in the corresponding field to associate the dashboard with a collection or service.
  7. Optional: Enter Tags in the corresponding field to associate the dashboard with key/value tag pairs.
  8. Click Save.

You can also import a Grafana dashboard or define them in YAML with Chronoctl.

Delete a classic dashboard

Chronosphere prevents users from modifying Terraform-managed resources in the user interface, with Chronoctl, or by using the API. For details, see the Terraform provider documentation.

To delete a classic dashboard:

  1. In the navigation menu select Dashboards.
  2. Open the dashboard you want to delete.
  3. Click Settings.
  4. Click General Dashboard Settings.
  5. Click Delete dashboard.

General dashboard settings

The General Dashboard Settings dialog presents fields to edit the dashboard's name, its associated collection, and any applied labels.

You can also delete the dashboard by clicking the delete icon.

Classic dashboard settings

To configure settings specific to classic dashboards, click Settings, then click Advanced Settings. This view organizes classic dashboard settings into several tabs.

General

The General tab (accessed from the navigation menu by selecting Advanced Dashboard Settings > General) contains:

Annotations

Use annotations to overlay system events on top of dashboards. For details, see the Grafana documentation (opens in a new tab).

You can add annotations manually or automatically using a query expression. To use a query to automatically add annotations, first determine that an event you want to track emits a metric.

For example, to overlay deployments, you can ingest a metric that tracks deployments into the Chronosphere platform. To use the Kubernetes metric kube_deployment_metadata_generation to automatically add deployment events from the gateway service as annotations on graphs, set these values for the annotation's fields:

  • Name: Gateway deployments

  • Data source: Chronosphere Prometheus (Use Chronosphere Graphite if using Graphite metrics)

  • Search expression:

    increase(kube_deployment_metadata_generation{chronosphere_k8s_cluster="$cluster",namespace="$namespace",deployment="gateway"}[5m])
    > 0

    This is a gauge metric with only two values: 1 when the service deploys, or 0 when there's no change in the deployment status. Adding > 0 to the search expression adds the annotation only to deployments.

  • Title: Gateway deploys

  • Tags: chronosphere_k8s_cluster,deployment

    These can come from variables set in the Variables section or from labels returned by the query.

  • Text: gateway deployed in {{namespace}}

    To use variables, wrap the variable name in double curly brackets ({{ }}).

Based on these settings, this is how the annotations looks:

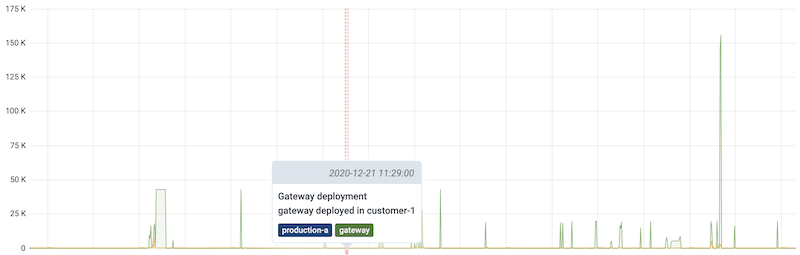

Dashboard annotation example

To add alerts as annotations, use the special ALERTS metric. For details, see the alerting documentation.
